2(a)Logic Gates Truth TablesEasy2 marks

Complete the truth table for the given logic circuit.

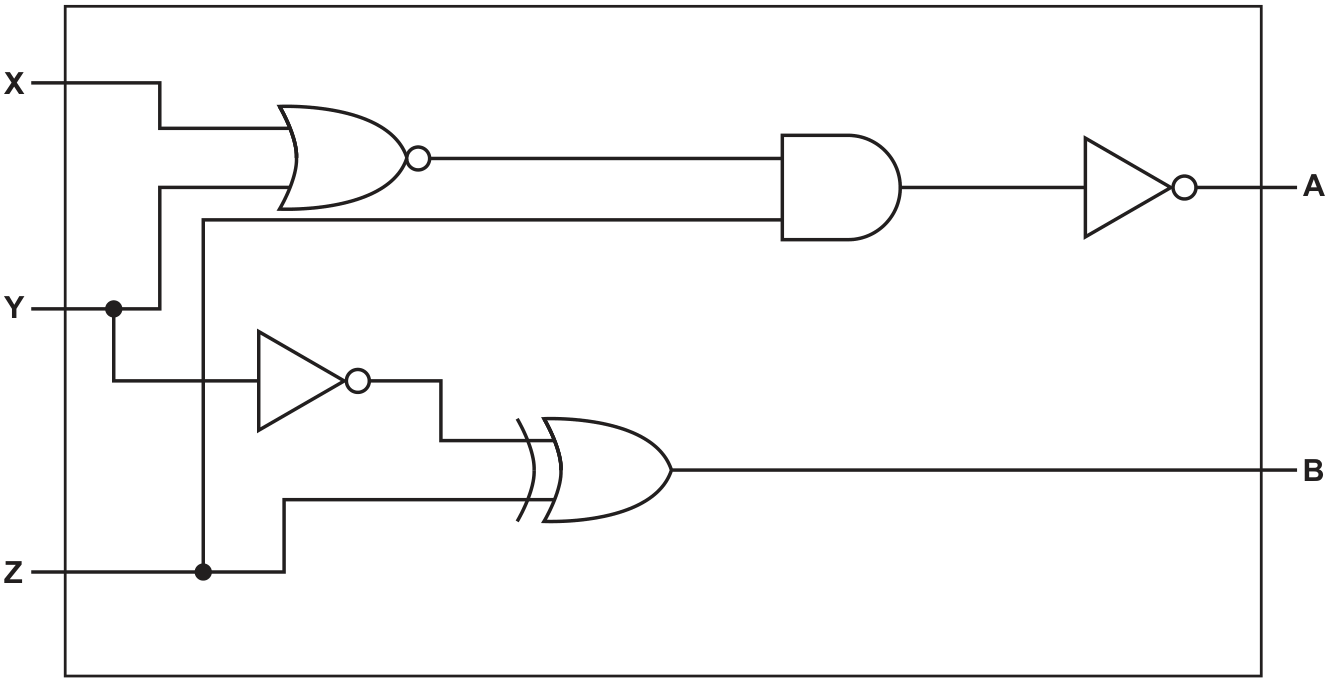

a logic circuit with inputs X, Y and Z and outputs A and B: X and Y feed a NOR gate; the NOR gate's output and Z feed an AND gate, whose output passes through a NOT gate to give A; Y also feeds a separate NOT gate, whose output, together with Z, feeds an XOR gate to give B

X	Y	Z	A	B
0	0	0	Table answer row1_A	Table answer row1_B
0	0	1	Table answer row2_A	Table answer row2_B
0	1	0	Table answer row3_A	Table answer row3_B
0	1	1	Table answer row4_A	Table answer row4_B
1	0	0	Table answer row5_A	Table answer row5_B
1	0	1	Table answer row6_A	Table answer row6_B
1	1	0	Table answer row7_A	Table answer row7_B
1	1	1	Table answer row8_A	Table answer row8_B

2(b)Logic Gates Truth TablesEasy1 mark

State two logic gates that are not in the circuit in 2(a).

Two answers required.
