36Series Parallel Circuit AnalysisHard1 mark

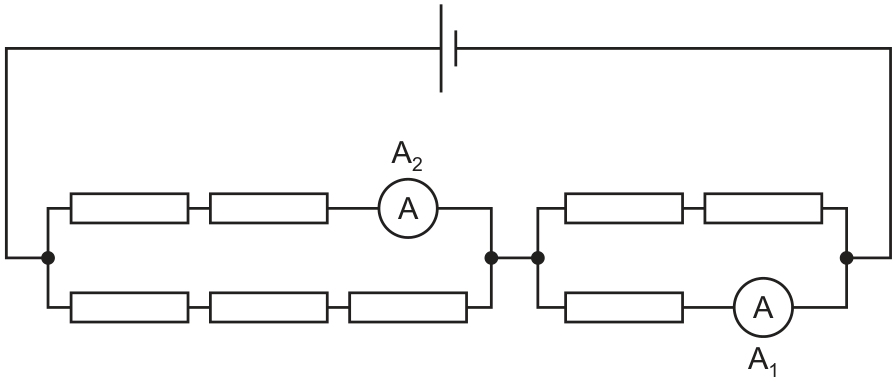

Eight identical resistors are connected as shown.
circuit of eight identical resistors and a battery in one loop: from a left junction, two parallel branches lead to a middle junction — the upper branch has two resistors in series then ammeter A2, the lower branch has three resistors in series; from the middle junction, two more parallel branches lead to a right junction — the upper branch has two resistors in series, the lower branch has one resistor in series then ammeter A1; the right junction connects back to the left junction through the battery
Ammeter reads 1.50 A. What is the reading on ammeter ?
