Context for question 8

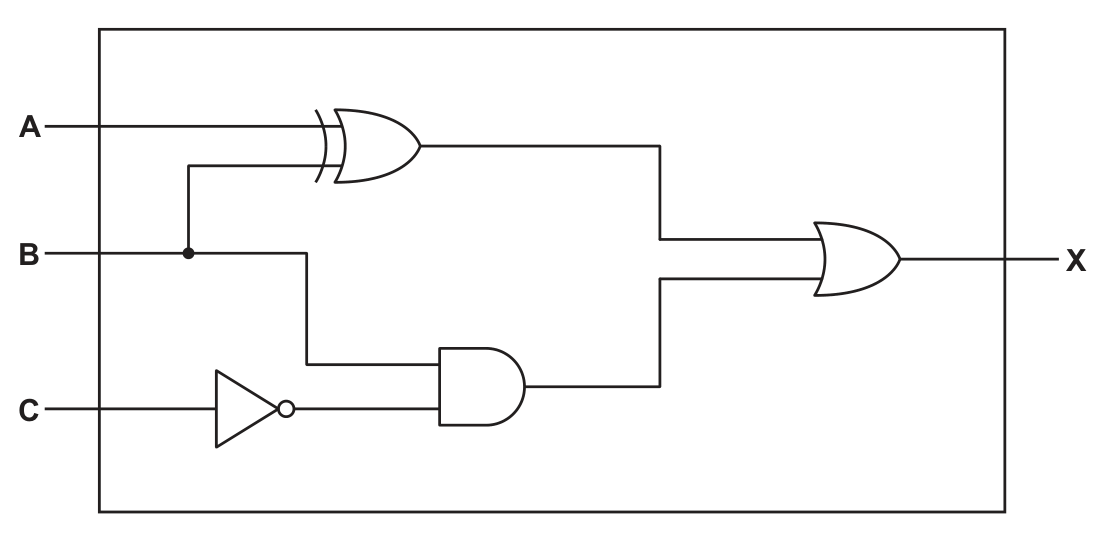

Consider the logic circuit:
logic circuit with inputs A, B and C: A and B feed an XOR gate, C is inverted by a NOT gate and combined with B in an AND gate, and the two results feed an OR gate giving output X
8(a)Logic Gates Truth TablesMedium3 marks
Write the logic expression for the given logic circuit.
8(b)Logic Gates Truth TablesMedium4 marks
Complete the truth table for the given logic circuit.
ABCX
000
001
010
011
100
101
110
111
