Context for question 8
Consider the logic expression:
(B OR NOT C) XOR (A NAND C)
May/June 2026 Paper 22
0/75 marks
0Correct0Partial0Wrong20Unattempted
Filters0 active
8(a)Logic Gates Truth TablesMedium5 marks

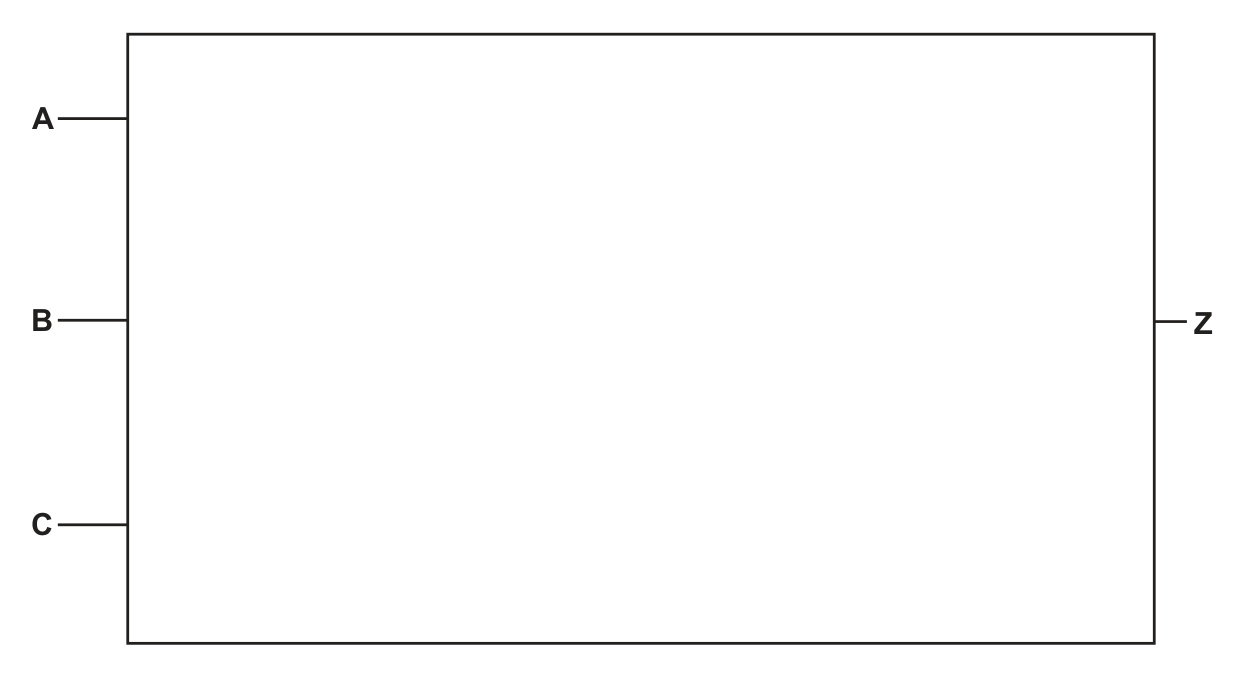

Draw a logic circuit for this logic expression.
Each logic gate must have a maximum of two inputs.
Do not simplify the logic expression.
PenEraserUndoRedoClear
8(b)Logic Gates Truth TablesMedium4 marks
Complete the truth table from the given logic expression.
| A | B | C | Z |
|---|---|---|---|
| 0 | 0 | 0 | |
| 0 | 0 | 1 | |
| 0 | 1 | 0 | |
| 0 | 1 | 1 | |
| 1 | 0 | 0 | |
| 1 | 0 | 1 | |
| 1 | 1 | 0 | |
| 1 | 1 | 1 |
