29Series Parallel Circuit AnalysisHard1 mark

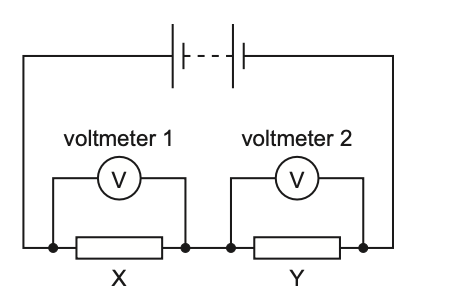

The diagram shows a battery connected to two resistors, X and Y. Two voltmeters are connected into the circuit.
a battery connected across resistors X and Y in series, with voltmeter 1 connected across X and voltmeter 2 connected across Y
The reading on voltmeter 1 is greater than the reading on voltmeter 2. Which row about the current in the two resistors and the resistance of the two resistors is correct?
currentsize of resistors
Acurrent is the same in both resistorsboth resistors have the same resistance
Bcurrent is the same in both resistorsresistance of X is greater than resistance of Y
Ccurrent in X is greater than current in Yboth resistors have the same resistance
Dcurrent in X is greater than current in Yresistance of X is greater than resistance of Y
