27Circuit Components I V CharacteristicsEasy1 mark

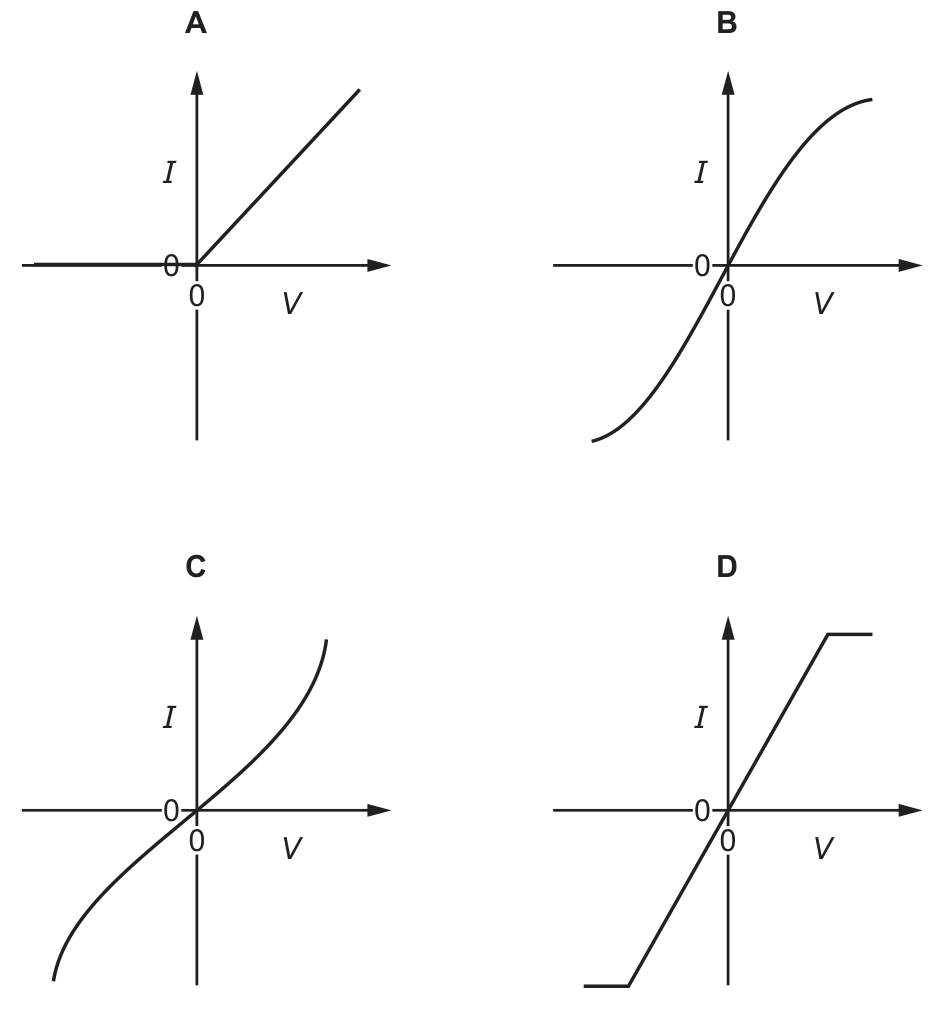

What is the current–voltage (I–V) graph of a filament lamp?
