33Transformers Power TransmissionHard1 mark
A 12 V, 36 W lamp shines at normal brightness when connected to a mains transformer. Assume the transformer is 100% efficient.

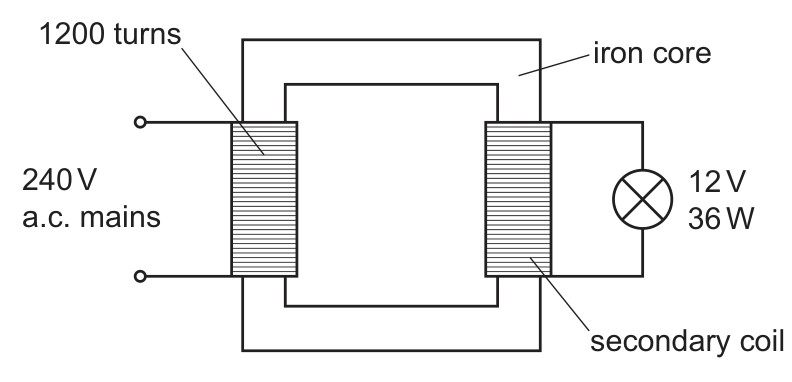

a transformer with a 1200-turn primary coil connected to 240 V a.c. mains, wound on an iron core with a secondary coil connected to a 12 V, 36 W lamp
Which row shows the number of turns in the secondary coil and the current in the mains wires?
number of turns in secondary coilcurrent in the mains wire / A
A600.15
B603.0
C1800.15
D1803.0
