30Series Parallel Circuit AnalysisMedium1 mark

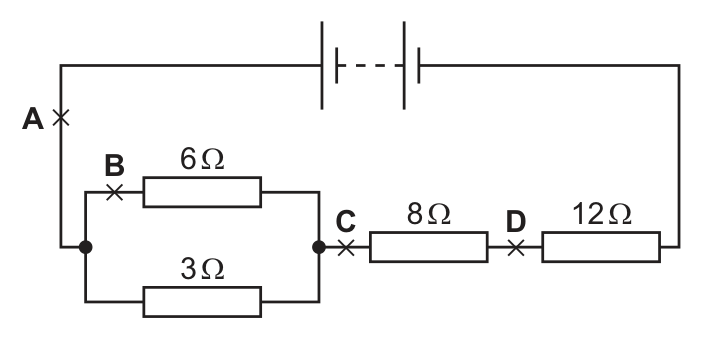

The diagram shows a battery connected to four resistors. The resistances of the resistors are as labelled.
a battery connected to four resistors: point A before a 6 ohm and 3 ohm resistor in parallel (labelled B before the 6 ohm branch), then in series with an 8 ohm resistor (labelled C before it) and a 12 ohm resistor (labelled D before it)
At which point in the circuit is the current the lowest?
