31Potential Dividers SensorsMedium1 mark
The circuit shown can be completed by inserting components at X and at Y. The completed circuit is a potential divider in which the potential difference (p.d.) across component Y increases when the temperature increases.

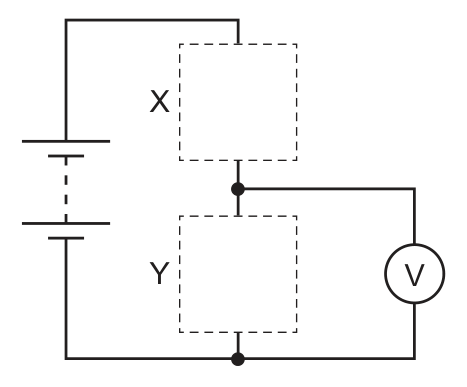

a potential divider circuit: a battery connected across two components in series, X above Y, with a voltmeter connected across Y
Which row shows the components X and Y?
XY
Alight-dependent resistorresistor
Bresistorlight-dependent resistor
Cresistorthermistor
Dthermistorresistor
