7(a)(i)Motor Effect Electric MotorsEasy3 marks

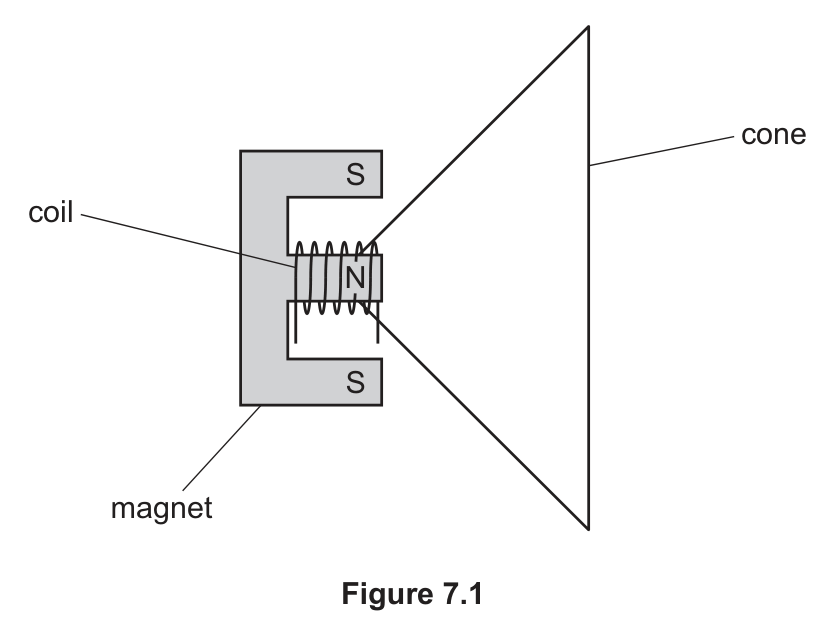

Figure 7.1 shows a simplified diagram of a loudspeaker.

Figure 7.1, a simplified loudspeaker: a coil wound on the central N pole of a magnet with S poles above and below, attached to a cone

Complete the sentences to describe and explain how a loudspeaker produces sound.

A changing magnetic field is produced by the in the coil. This magnetic field interacts with the magnetic field due to the . This causes the cone to vibrate. The vibration of the transfers energy to a student as sound.

7(a)(ii)Wave Properties Wave BehaviourEasy2 marks

A sound of frequency 440 Hz is produced by the loudspeaker. The speed of the sound is 340 m / s. Calculate the wavelength of this sound. State the unit.

Unit

7(b)Sound Doppler EffectEasy1 mark

Define ‘ultrasound’.
