1(a)(i)Motion GraphsMedium2 marks

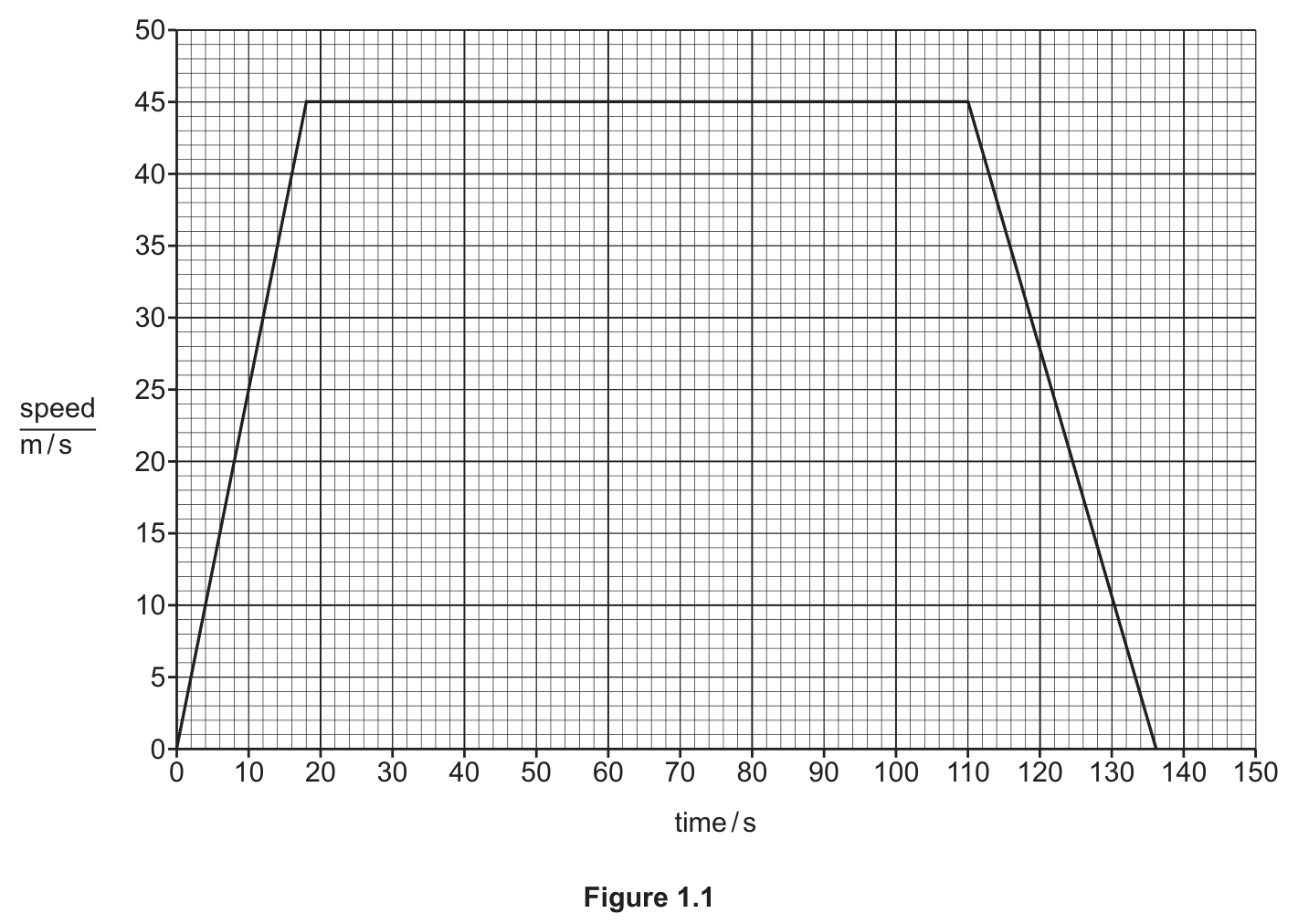

Figure 1.1 shows a speed–time graph for a toy aircraft.
Figure 1.1, a speed-time graph for a toy aircraft, with speed in m / s on the vertical axis and time in s on the horizontal axis
Describe the motion between times:
18 s and 110 s
110 s and 136 s
1(a)(ii)Motion GraphsMedium3 marks
Calculate the distance travelled between time = 0 and time = 110 s.
1(a)(iii)Motion GraphsEasy2 marks
Calculate the acceleration between time = 0 and time = 18 s.
1(b)Energy Work Power EfficiencyEasy2 marks
A small aircraft travels at a constant speed of 60 m / s. The mass of the small aircraft is 820 kg. Calculate the energy in the kinetic store of the aircraft.
