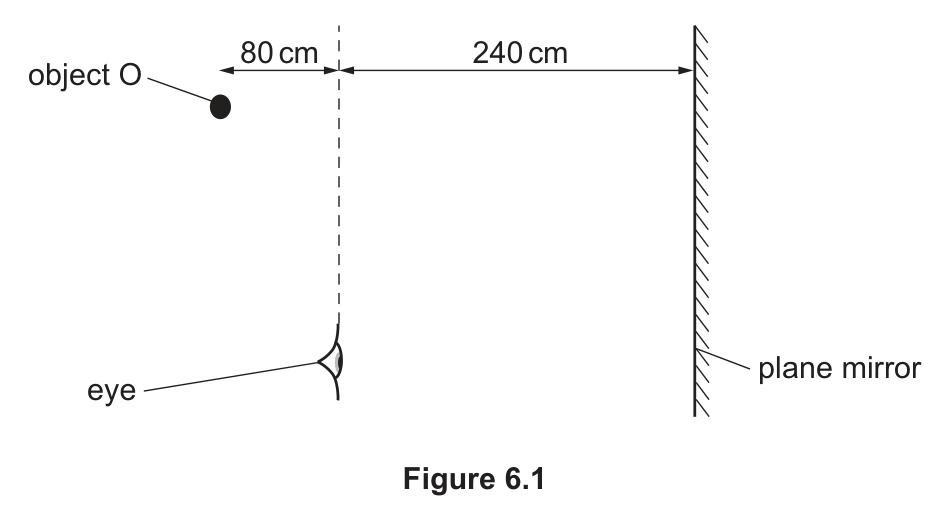

An image of object O is formed by a plane mirror. A person views the image. Figure 6.1 shows a scale diagram of the arrangement. Mark the position of the image. Label it I.

Draw with the mouse or a finger.

6(a)(ii)Reflection MirrorsEasy2 marks

Draw on Figure 6.1 to show the path of the light from object O to the person’s eye.

Draw with the mouse or a finger.

6(b)(i)Refraction Total Internal ReflectionEasy2 marks

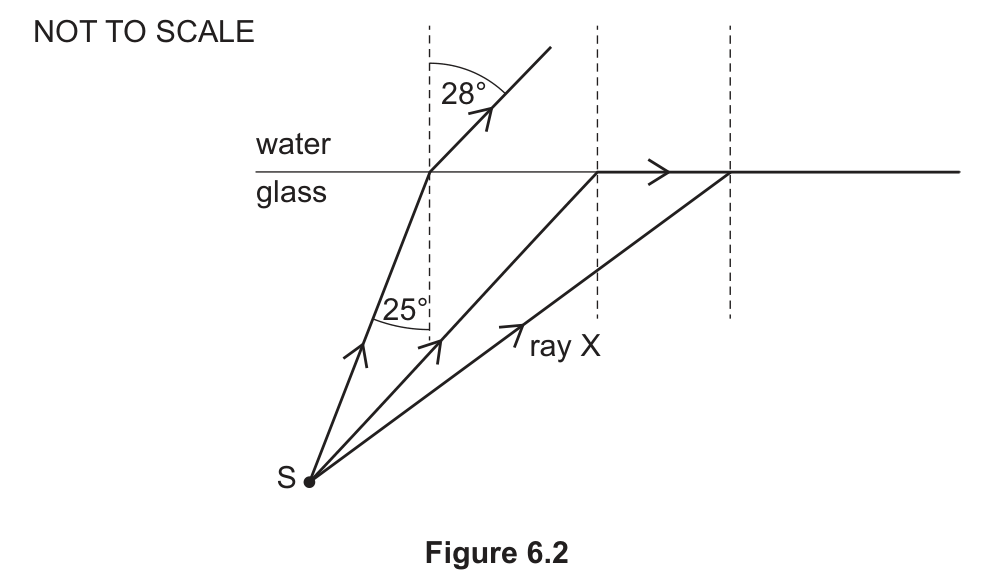

Figure 6.2 shows three rays of light travelling from a light source S. The rays travel in glass towards a glass–water boundary.

Figure 6.2, three rays of light from a source S travelling up through glass to a horizontal glass-water boundary, with angles of 25 degrees and 28 degrees marked to normals at the boundary and the shallowest ray labelled ray X; marked NOT TO SCALE

Calculate the refractive index for the glass–water boundary. Use information from Figure 6.2.

6(b)(ii)Refraction Total Internal ReflectionEasy1 mark

On Figure 6.2, label the critical angle c.

Draw with the mouse or a finger.

6(b)(iii)Refraction Total Internal ReflectionEasy1 mark

On Figure 6.2, continue the path of ray X after it reaches the glass–water boundary.

Draw with the mouse or a finger.
