February/March 2026 Paper 22

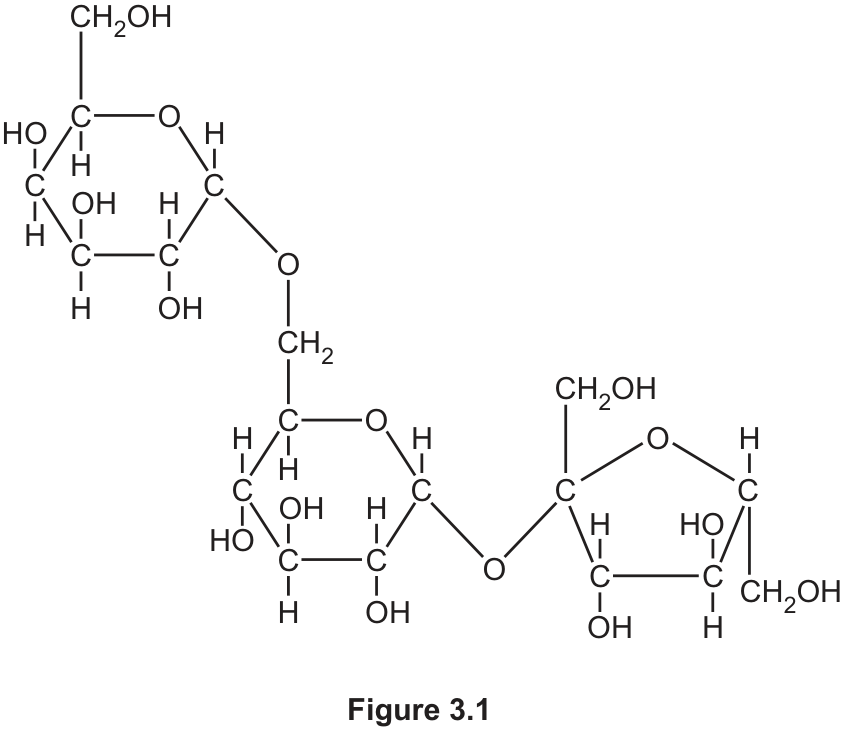

Raffinose is formed by the reaction of three different monosaccharides, one of which is glucose. On Figure 3.1, draw around the part of the molecule that forms glucose when the glycosidic bonds in raffinose are hydrolysed.

State the type of glucose molecule that is formed when the glycosidic bonds of raffinose are hydrolysed.

Raffinose produces the same results as sucrose when it is tested with Benedict's solution.

For each sugar, select the number of glycosidic bonds in one molecule and whether it is a reducing sugar or a non-reducing sugar. Maltose is a disaccharide.

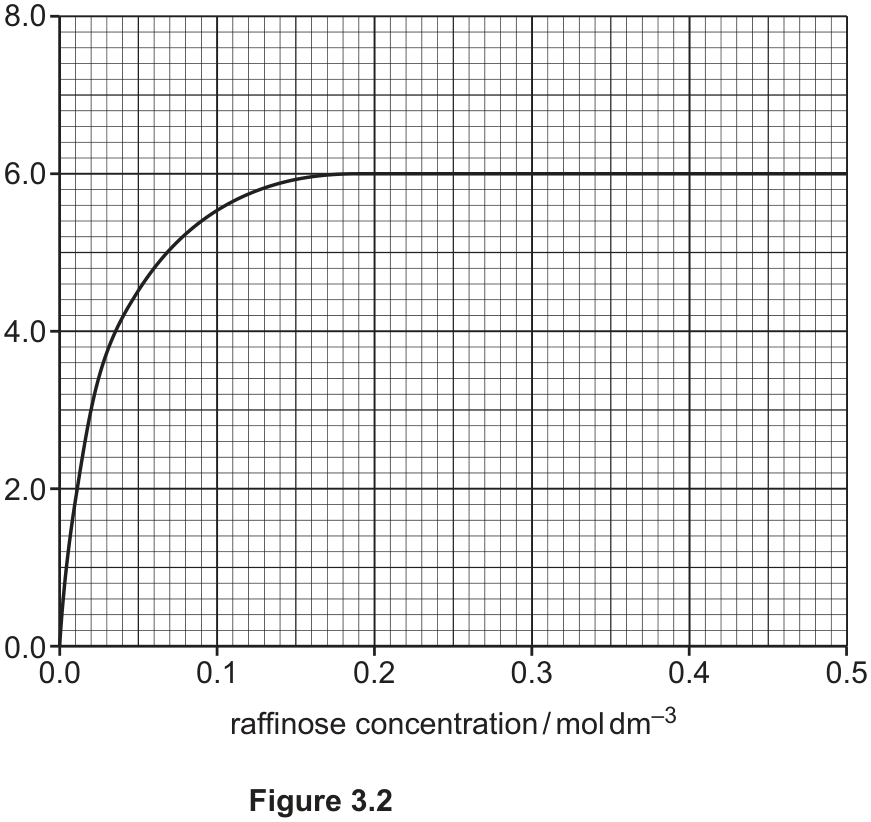

Some bacteria in the human digestive system synthesise an enzyme known as $\alpha$-GAL, which breaks down raffinose. The rate of breakdown of raffinose by $\alpha$-GAL at different concentrations of raffinose is shown in Figure 3.2.

Determine the Michaelis–Menten constant, $K_m$, for $\alpha$-GAL using the data in Figure 3.2.

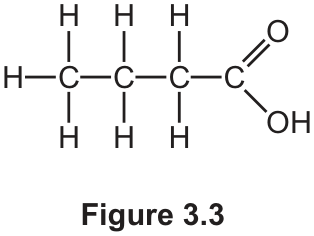

One of the molecules formed from the breakdown of raffinose by bacteria is shown in Figure 3.3.

State the type of molecule shown in Figure 3.3.

The molecule shown in Figure 3.3 can be used to make a triglyceride. Describe how this molecule can become part of a triglyceride molecule.
