20Elasticity Hookes Law Young ModulusMedium1 mark

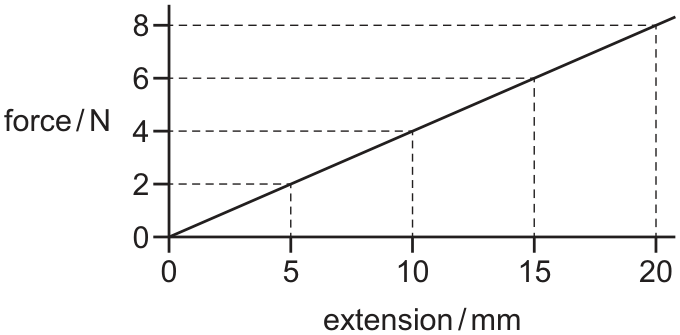

The graph shows the relationship between the applied force and the extension for a spring.
a straight-line graph of force in N (vertical axis) against extension in mm (horizontal axis), passing through the origin and rising linearly to 8 N at 20 mm, with dashed construction lines marking the force at extensions of 5, 10, 15 and 20 mm
X is the work done by the force in extending the spring from 0 to 10 mm. Y is the work done by the force in extending the spring from 10 mm to 20 mm.
What is the ratio X : Y?
