33Circuit Components I V CharacteristicsMedium1 mark
Which graph shows the I–V characteristic of a filament lamp?

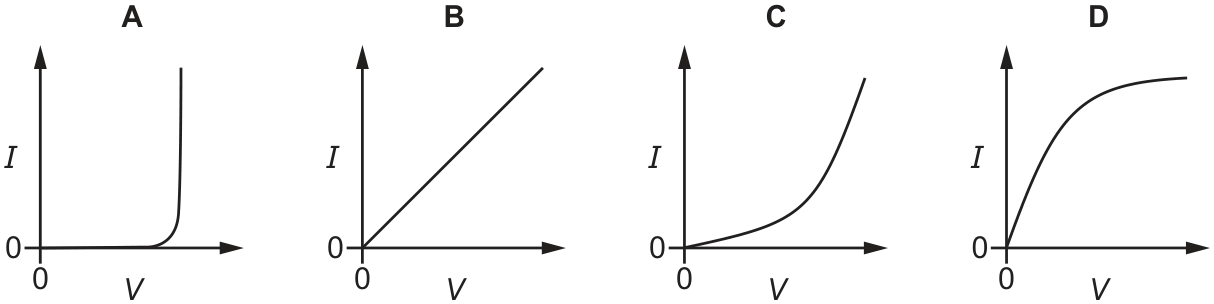

four graphs of current I (vertical axis) against voltage V (horizontal axis), all starting at the origin: A stays near zero then rises very steeply, almost vertically; B is a straight line through the origin; C curves upward with an increasing gradient; D curves upward steeply at first then levels off, flattening at higher V
