36Series Parallel Circuit AnalysisHard1 mark
Three resistor networks, X, Y and Z, are formed from identical resistors as shown.

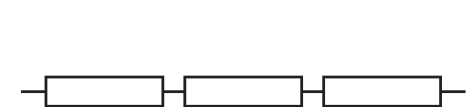

network X: three resistors connected end to end in a single series chain between two terminals
X
network Y: three resistors connected in parallel with each other between the same two terminals
Y

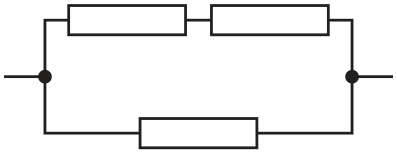

network Z: two resistors connected in series with each other, with that series pair connected in parallel with a third resistor, between two terminals
Z
What is the order of the networks from smallest total resistance to largest total resistance?
