13Moments Equilibrium Centre MassMedium1 mark
Two forces, each of magnitude , act on a beam of length as shown.

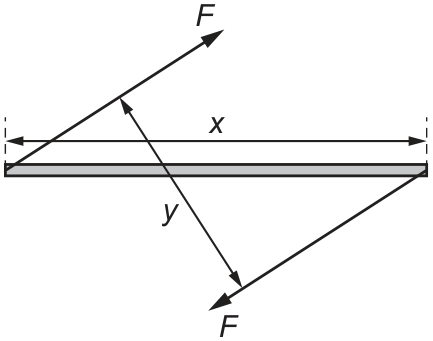

a horizontal beam of length x with a force F acting up and to the right from its left end and an equal force F acting down and to the left from its right end, the two parallel forces forming a couple with perpendicular distance y between their lines of action
The perpendicular distance between the forces is and the two forces form a couple.
What is the torque of the couple?
