33Series Parallel Circuit AnalysisHard1 mark

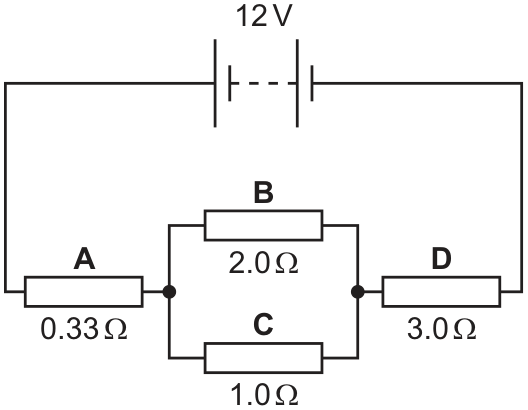

The diagram shows a circuit.
Which resistor dissipates the least power?
a circuit with a 12 V battery connected to resistor A (0.33 Ω) in series with a parallel combination of resistor B (2.0 Ω) and resistor C (1.0 Ω), then in series with resistor D (3.0 Ω), forming a single loop back to the battery
