22Elasticity Hookes Law Young ModulusHard1 mark
Identical springs are joined in four arrangements.

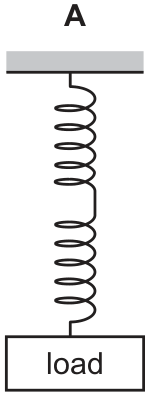

arrangement A: two identical springs joined end to end in a single chain from the support down to one load, i.e. two springs in series
arrangement B: two identical springs of single natural length side by side in parallel, both connecting the support directly to one shared load

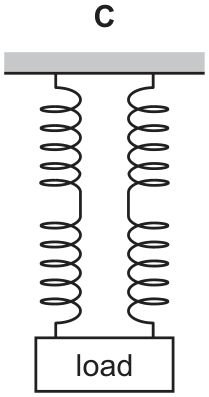

arrangement C: two identical springs side by side in parallel, each drawn twice as long as a single spring (i.e. each equivalent to two springs in series), both connecting the support directly to one shared load

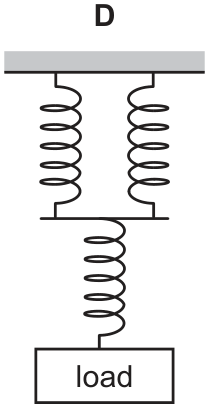

arrangement D: two identical springs of single natural length side by side in parallel between the support and a rigid cross-bar, with one further identical spring in series below the bar connecting down to the load
Which arrangement has the same spring constant as a single spring?
