36Potential Dividers SensorsHard1 mark

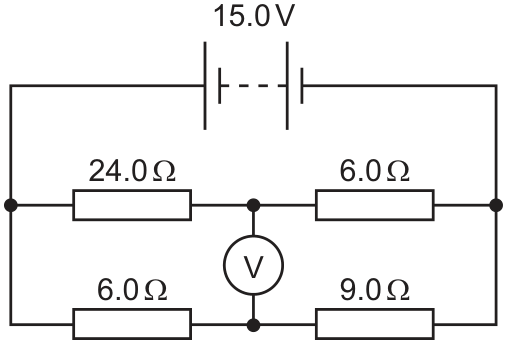

A circuit consists of a battery, a high-resistance voltmeter and four fixed resistors as shown. The battery has an electromotive force (e.m.f.) of 15.0 V and negligible internal resistance.
a circuit with a 15.0 V battery of negligible internal resistance connected to two parallel branches: the top branch has a 24.0 Ω resistor in series with a 6.0 Ω resistor, the bottom branch has a 6.0 Ω resistor in series with a 9.0 Ω resistor, and a high-resistance voltmeter is connected between the midpoint of the top branch and the midpoint of the bottom branch
What is the reading on the voltmeter?
