37Series Parallel Circuit AnalysisHard1 mark

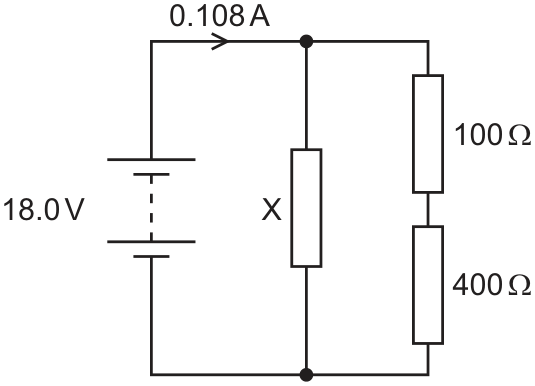

A battery of electromotive force (e.m.f.) 18.0 V and negligible internal resistance is connected to a network of three fixed resistors as shown.
circuit diagram: an 18.0 V battery in series with the ammeter reading 0.108 A, connected to resistor X, which is in parallel with a branch containing a 100 ohm resistor in series with a 400 ohm resistor
The current in the battery is 0.108 A. What is the resistance of resistor X?
