6Motion GraphsMedium1 mark
A small glider moves along a horizontal air track as shown.
a glider on a horizontal air track raised slightly at one end: a buffer is fixed at each end of the track, the glider sits between them, and an arrow labelled air shows air entering at the lower end to support the glider
At each end of the air track, the glider has a perfectly elastic collision with a fixed buffer. The glider moves at a constant speed between collisions. Which graph represents the variation with time t of the velocity v of the glider as it moves between the two buffers?

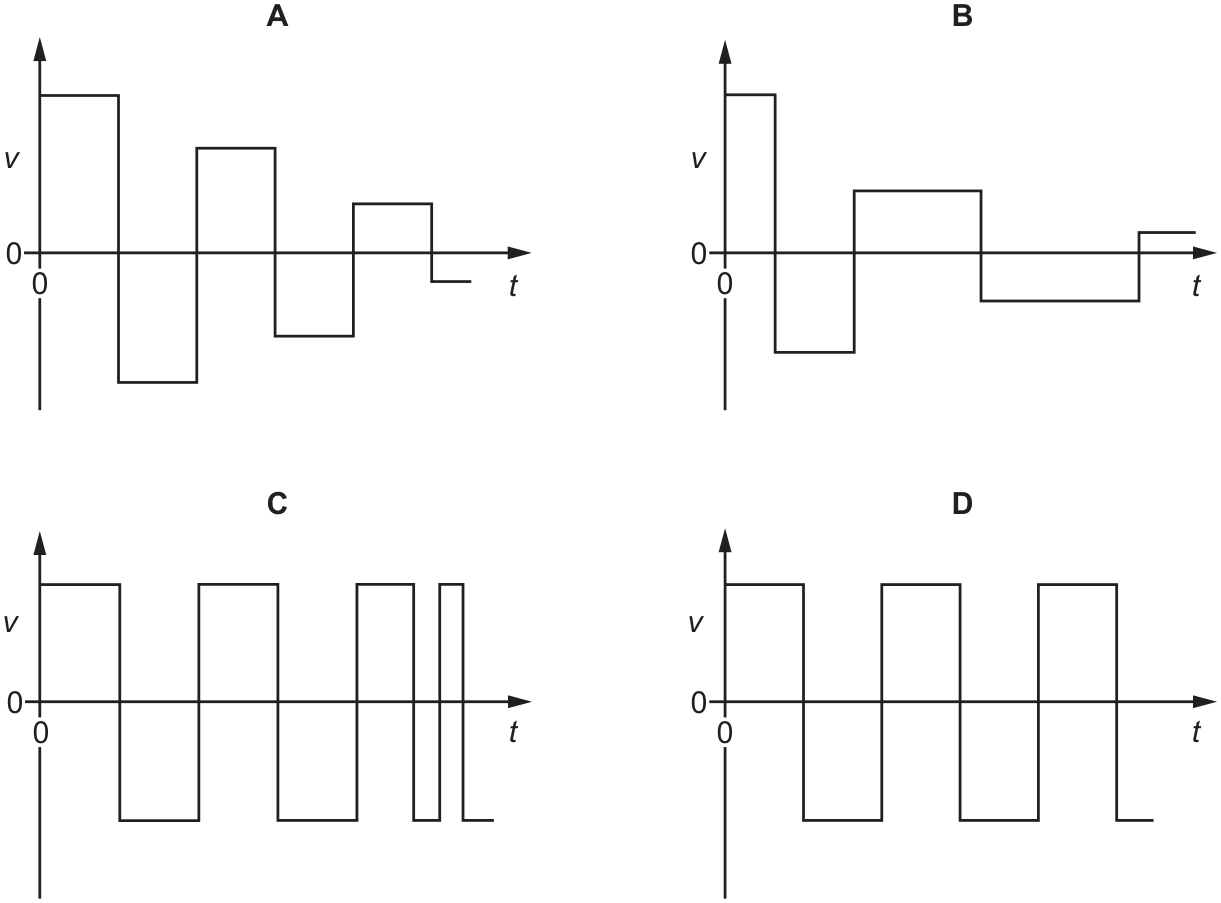

four graphs of velocity v (vertical) against time t (horizontal), each a square wave alternating between a positive and a negative step: in A and B the step heights shrink irregularly and the time intervals are uneven; in C the step heights are equal throughout but two intervals near the end are much narrower than the rest; in D the step heights are equal and every time interval is the same width throughout
