1(a)Gravitational Fields OrbitsEasy2 marks

Define gravitational potential at a point.

Answer

0 words

1(b)(i)Gravitational Fields OrbitsMedium2 marks

A uniform spherical planet has radius

R

. The gravitational potential at its surface is

- Φ

. P is a point on a line that passes through the centre of the planet, at variable displacement

x

from the centre, as shown in Figure 1.1.

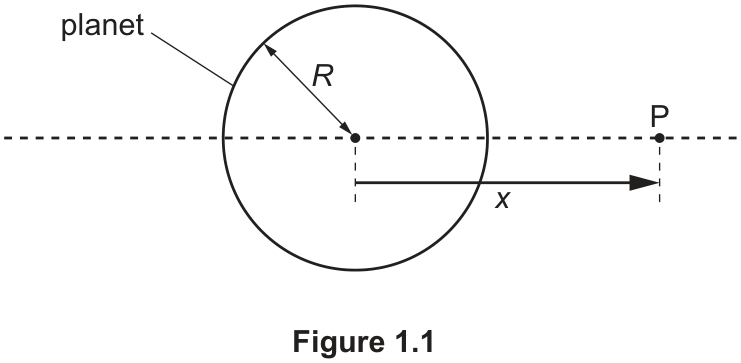

Figure 1.1, a spherical planet of radius $R$ with point P on a line through its centre at variable displacement $x$ from the centre

Figure 1.2 shows the variation with

x

of the gravitational potential

ϕ

due to the planet in the region outside the planet close to its surface.

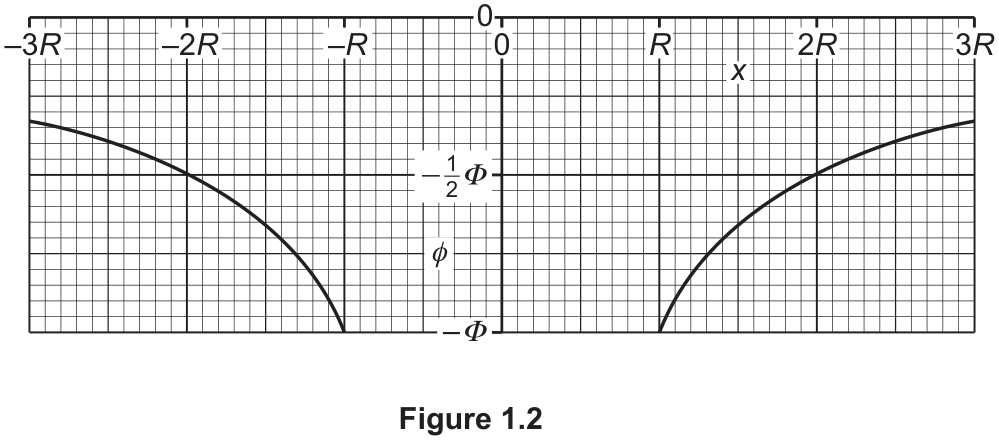

Figure 1.2, a graph of gravitational potential $\phi$ against displacement $x$ outside a planet: two symmetric curves, each passing through $-\Phi$ at $x=\pm R$, through about $-\frac{1}{2}\Phi$ near $x=\pm 2R$, and levelling off towards zero by $x=\pm 3R$

Explain why

ϕ

is negative for all values of

x

Answer

0 words

1(b)(ii)Gravitational Fields OrbitsEasy2 marks

State an expression, in terms of

Φ

and

R

, for the mass

M

of the planet. Identify any other symbols that you use.

Identify

G

1(b)(iii)Gravitational Fields OrbitsEasy1 mark

Determine an expression, in terms of

Φ

and

R

, for the gravitational field strength

g_{0}

at the surface of the planet.

1(b)(iv)Gravitational Fields OrbitsMedium3 marks

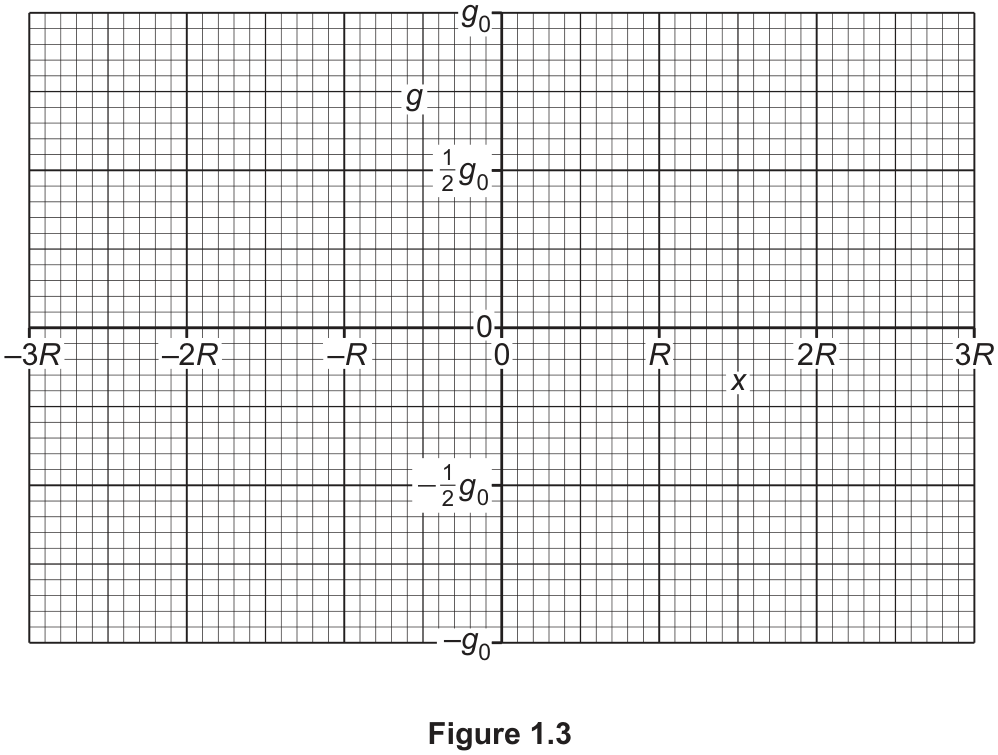

On Figure 1.3, sketch the variation of the gravitational field

g

with

x

between

x = - 3 R

and

x = 3 R

. Do not include the region inside the sphere between

x = - R

and

x = R

Draw with the mouse or a finger.
