Context for question 1
A student cycles from home to school. Figure 1.1 shows the distance–time graph for this journey.

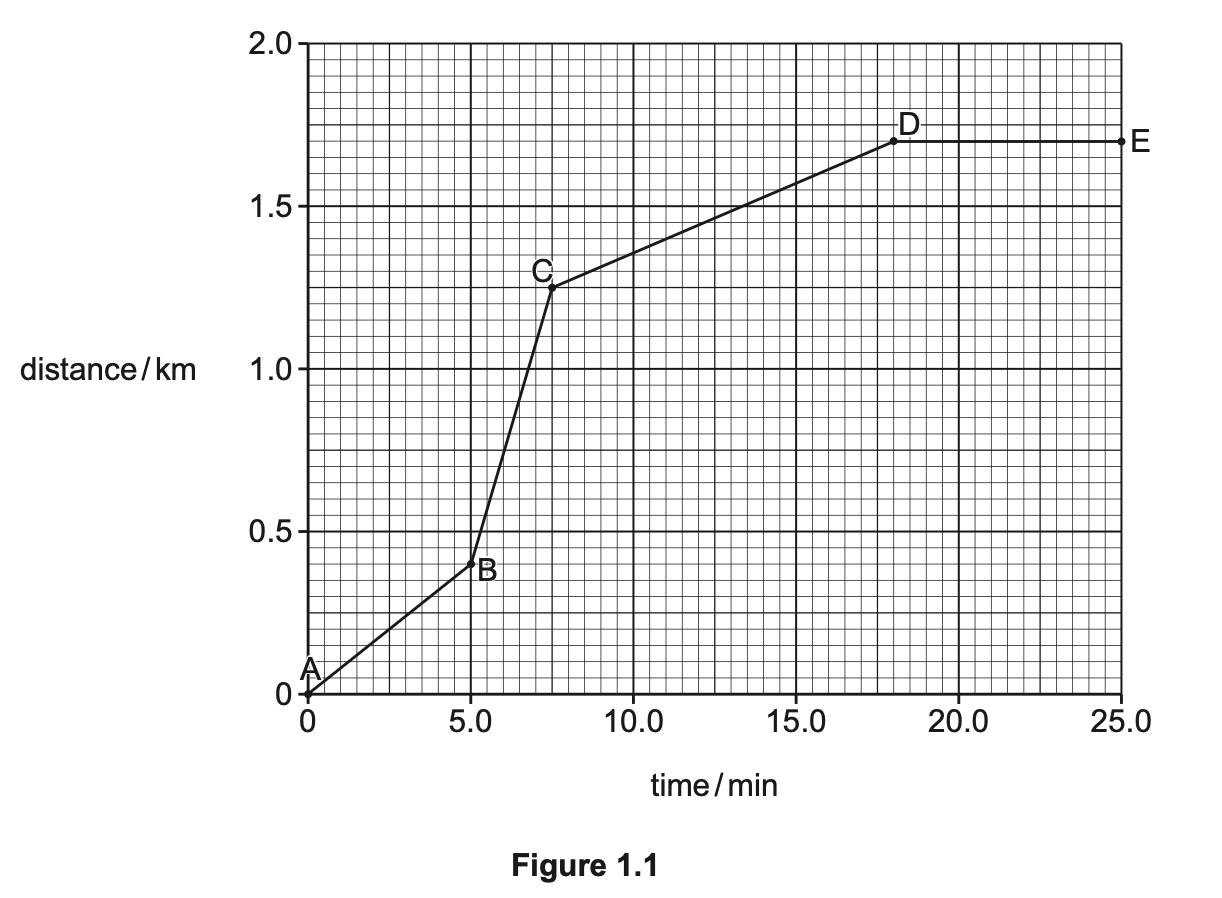

Figure 1.1, a distance-time graph of the student's journey with distance in km on the vertical axis (0 to 2.0) and time in min on the horizontal axis (0 to 25.0), a line through five labelled points A, B, C, D and E that rises in three straight sections and then runs level
1(a)Motion GraphsEasy1 mark
State the distance between home and school.

Answer

1(b)Motion GraphsMedium2 marks
State one point, A, B, C, D or E which identifies a time when: 1 the student accelerates 2 the student decelerates
Point where student accelerates
Point where student decelerates
1(c)Motion GraphsMedium3 marks
Use Figure 1.1 to calculate the student’s maximum speed in km/h.
Working
0 words
Maximum speed
