Context for question 9

Figure 9.1 shows a beam of

α

-particles and

γ

-radiation entering an electric field between two charged metal plates P and Q.

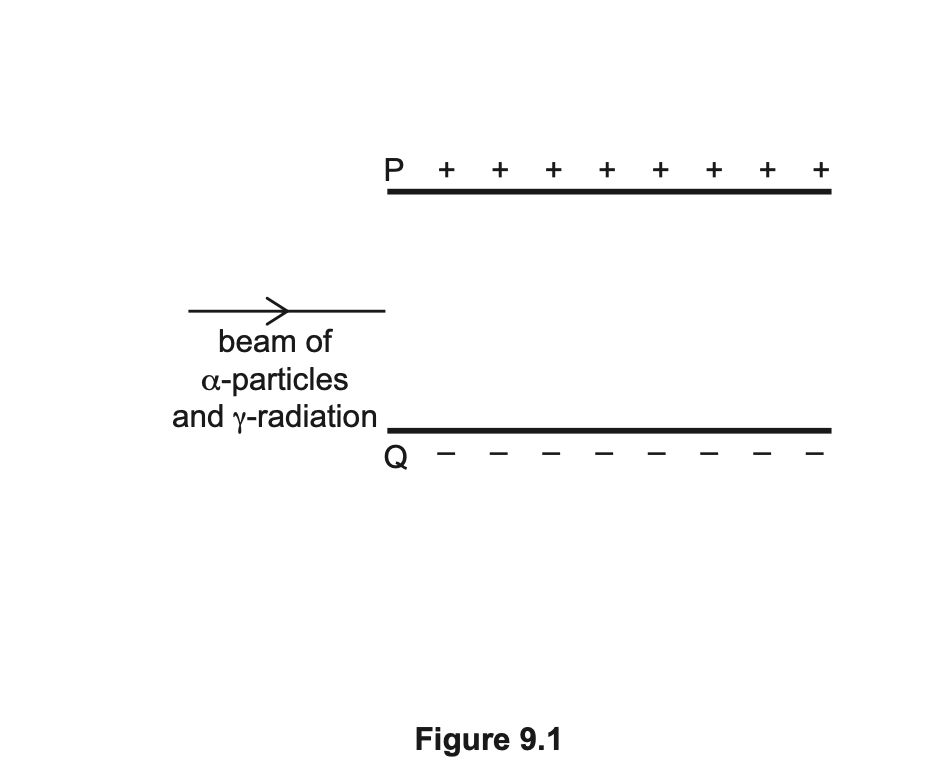

Figure 9.1, a beam of alpha-particles and gamma-radiation travelling horizontally into the gap between two parallel charged plates, plate P positive on top and plate Q negative on the bottom, with space between the plates for the candidate to draw the deflected paths

9(a)Coulombs Law Electric FieldsMedium3 marks

On Figure 9.1, draw the path of: 1 the

α

-particles inside the electric field. Label this line

α

. 2 the

γ

-radiation inside the electric field. Label this line

γ

Draw with the mouse or a finger.

9(b)Radiation Properties Uses SafetyEasy2 marks

A student places a sheet of paper in the path of the beam before it reaches the electric field. State how this affects the path of the

α

-particles and

γ

-radiation inside the electric field.

α

-particles

γ

-radiation

9(c)Coulombs Law Electric FieldsMedium3 marks

The beam of

α

-particles and

γ

-radiation in Figure 9.1 is replaced by a beam of

β

-particles. State and explain the path of the

β

-particles in the electric field. Use ideas about electrostatic force in your answer.

Statement

Explanation

0 words
